Vertical Platform Lifts
Residential Vertical Platform Lift
Boost home access for people in mobility devices. Sometimes called a porch lift, a Bruno vertical platform lift gives people in scooters and wheelchairs the ability to easily enter/exit their home. Suitable for indoor or outdoor use, Bruno vertical platform lifts also provide access up to 14 feet for decks and basements.
Model: VPL-3100B; VPL-3200B
Use a vertical platform lift like a mini home elevator. Often called a porch lift, a Bruno residential vertical platform lift is a cost-effective home accessibility solution to give scooter and wheelchair users an alternative to entryway or deck steps.
Bruno vertical platform lifts offer space-efficient access
- Automatic self-lowering folding ramp
- Quiet, smooth ride
- Weather-resistant finish and controls
- Emergency stop switch on platform
- Safety sensors in platform bottom stop unit if obstruction sensed
- Affordable AC power in 4- and 6-ft units
- Reliable DC battery power, available in all heights and standard above 10-ft, ensures operation in power outage
Commercial

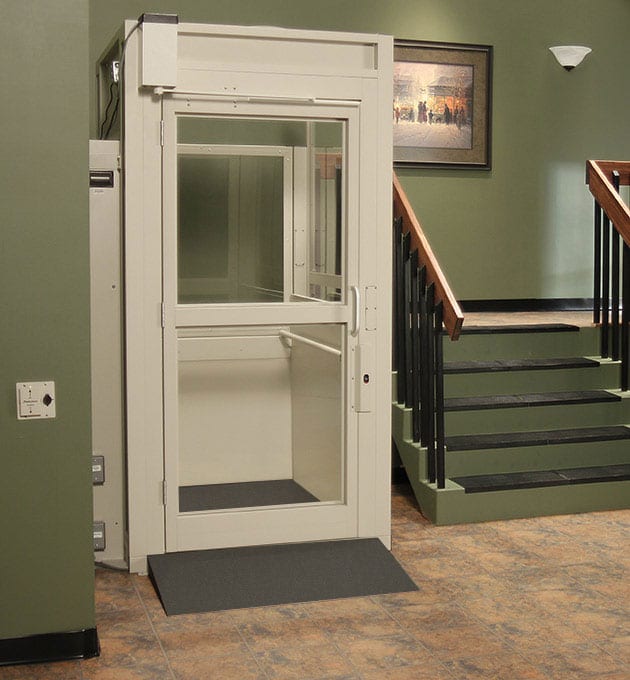

Enclosure Vertical Platform Lift
Lightweight and easy to install, Bruno’s Enclosure vertical platform lift is self-contained and needs no hoistway or shaftway. With full-size Plexiglas door and panel inserts, the Enclosure VPL wheelchair lift is an attractive choice for ADA compliance. Made-in-America.
- Access up to 14′
- 750 lb (340 kg) lifting capacity
- Reliable, quiet ACME screw-driven DC motor with continuous charge battery operation
- Weather-protected controls and powder-coated paint
- Keyed, constant pressure platform controls with emergency stop switch and audio/visual alarm
- Bottom platform safety panel
- Top/bottom limit switches; upper/lower final limit safety switches
- Fixed ramp
- Clear Plexiglas
- 42″ (1067 mm) high, solid, side platform walls
- 36″ x 54″ (914 mm x 1372 mm) non-skid platform
- Power system models VPL-3353B, VPL-3375B: 1/2 hp DC motor (includes 17AH batteries)
- VPL-3310B, VPL-3312B, VPL-3314B: 1 hp DC motor (includes 34AH batteries)
- Gold Warranty: Two years on major components; one year on parts

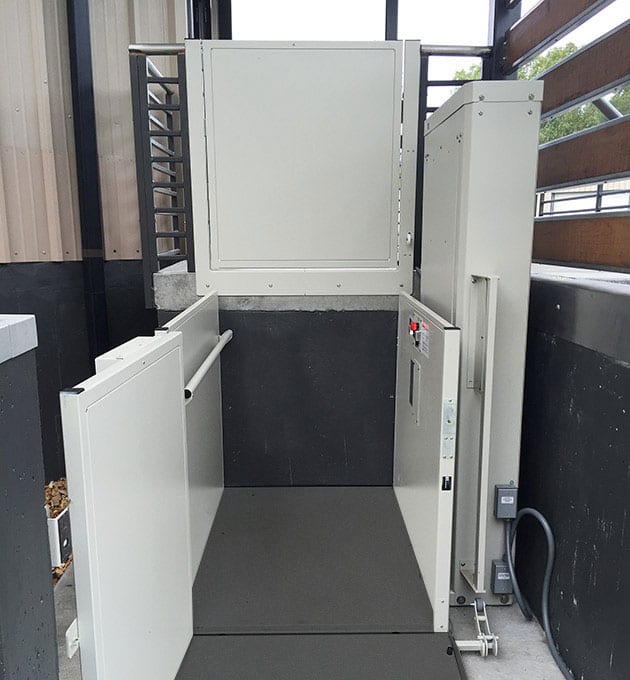

Unenclosed Vertical Platform Lift
Access to stages, porches or short distances are common uses of Bruno’s affordable unenclosed vertical platform lift. Verify that local codes allow for an unenclosed wheelchair lift solution. Made in America quality with weather-protected controls for inside or outside applications.
- Provides access up to 60″
- 750 lb (340 kg) lifting capacity
- Automatic self-lowering folding ramp
- Reliable, quiet ACME screw-driven DC motor with continuous charge battery operation
- Keyed, constant pressure platform controls; emergency stop and audio/visual alarm
- Bottom platform safety panel
- Top/bottom limit switches; upper/lower final limit safety switches
- Weather-protected controls and powder coated paint
- 42″ (1067 mm) high, solid, side platform walls
- 36″ x 54″ (914 mm x 1372 mm) non-skid platform
- Power system: models VPL-3353B, 3375B: 1/2 hp DC motor (includes 17AH batteries)
- Gold Warranty: Two years on major components; one year on parts

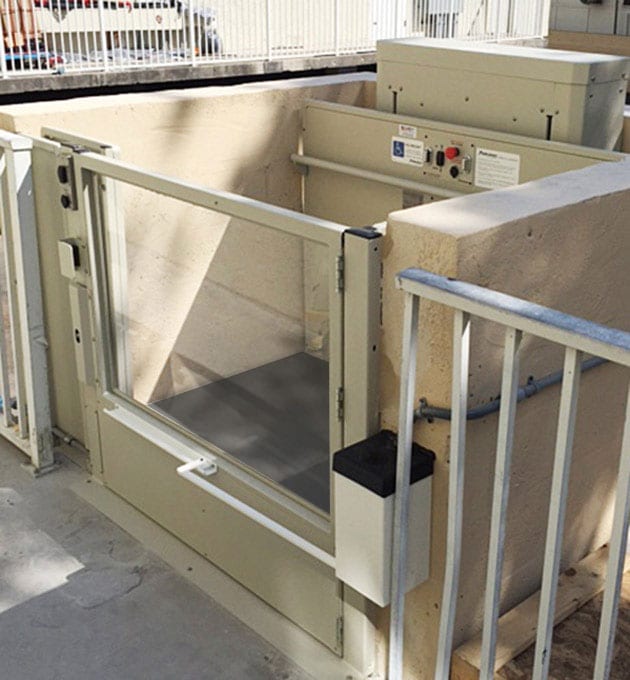

Shaftway / Hoistway Vertical Platform Lift
Bruno’s Shaftway vertical platform lift is placed inside a shaftway (also known as a hoistway) built by others. Providing access up to 14 ft, the shaftway wheelchair lift includes a drive mast, passenger platform, doors and gates.
- Access up to 14′
- Reliable, quiet ACME screw-driven DC motor with continuous charge battery operation
- Weather-protected controls and finish
- Keyed, constant pressure platform controls; emergency stop switch & audio/visual alarm
- Bottom platform safety panel
- 42″ (1067 mm) high, solid, side platform walls
- Top/bottom limit switches; upper/lower final limit safety switches
- 36″ x 54″ (914 mm x 1372 mm) non-skid platform
- Fixed ramp or pit
- Power system models VPL-3353B, VPL-3375B: 1/2 hp DC motor (includes 17AH batteries); models VPL-3310B, VPL-3312B & VPL-3314B: 1 hp DC motor (includes 34AH batteries)
- Gold Warranty: 2 years, major components;1year parts

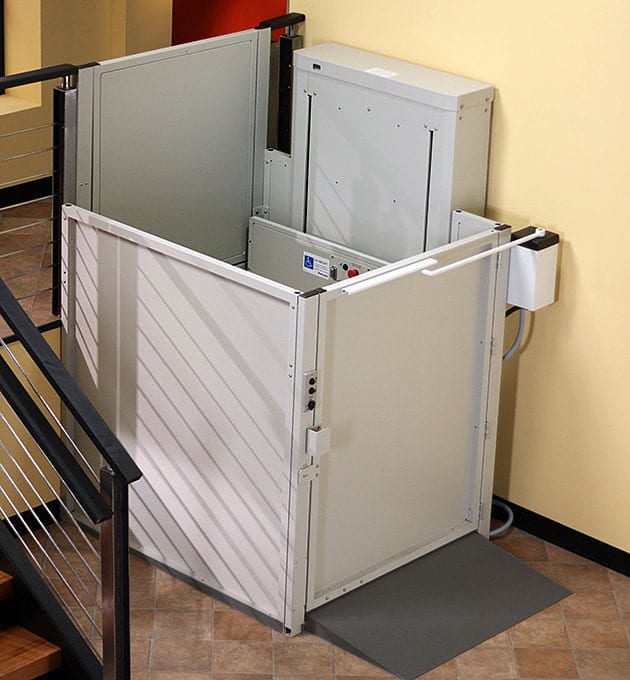

3-Gate Vertical Platform Lift
Bruno’s 3-gate (Toe-guard) lower enclosure vertical platform lift provides a full barrier at the lower landing with no access under the lift for maximum safety. Access up to 53 inches with a quiet, smooth ACME screw-driven DC motor with continuous charge battery operation for performance even in power outages.
- Provides access to 53″
- 750 lb (340 kg) lifting capacity
- Reliable, quiet ACME screw-driven DC motor with continuous charge battery operation
- Weather-protected controls and powder-coated paint
- Keyed, constant pressure controls on platform; emergency stop switch and audio/visual alarm
- Bottom platform safety panel
- 42″ (1067 mm) high, solid, side platform walls
- Top/bottom limit switches; upper/lower final limit safety switches
- 36″ x 54″ (914 mm x 1372 mm) non-skid platform
- Fixed ramp
- Power system model VPL-3353B, 1/2 hp DC motor (includes 17AH batteries)
- Gold Warranty: Two years on major components; one year on parts
